Reports of fires in sawmills are constantly appearing in the press. Between 2015 and 2017, a total of 79 sawmill fires were reported in Germany, Austria and Switzerland. For some time now, organisations – such as the Association of the German Sawing and Wood Industry (Verband Deutsche Säge- und Holzindustrie, DeSH) – have been signalling that it is becoming increasingly difficult for sawmill operators to find insurance cover with reasonable premiums, at least in Germany.1
After briefly outlining the typical structure of a sawmill, as well as the related current market situation and its challenges, this article discusses potential risks and preventative measures. It also presents some thoughts on the underwriting of sawmills.
Sawmills are economic enterprises that process logs delivered by forestry by turning them into boards and beams. The products of sawmills are sometimes processed further downstream.
The main product is sawn timber that is used for glued laminated timber, construction timber, solid wood boards, planed wood, profile wood or for various building purposes (roof construction, roof cladding, exterior cladding, etc.).
The by-products of the sawing process are also used. Bark is burnt for heating purposes (biomass) or transformed into bark mulch; sawdust and screened chips are used as raw materials in the fibre board industry or compressed into pellets; wood chips and off-cuts are mainly used for pulp production in the paper industry, burnt for heating purposes or compressed into pellets.

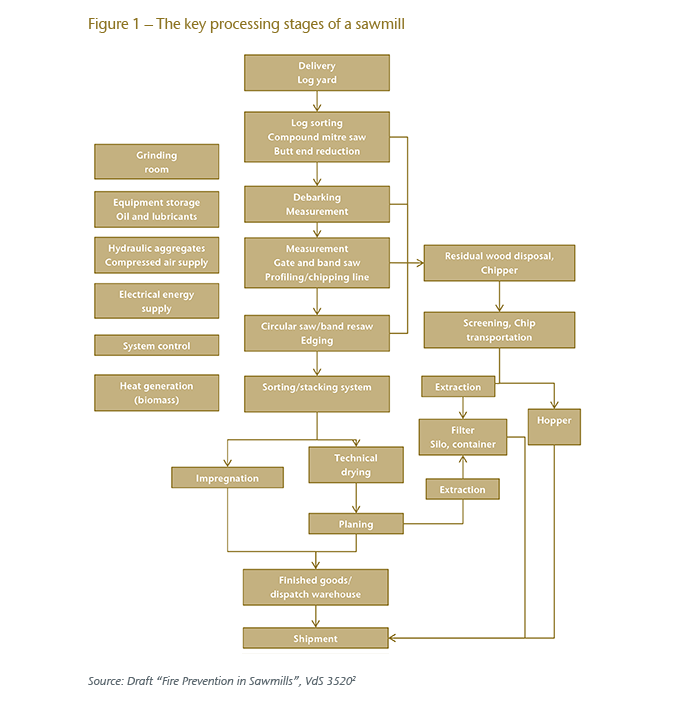

The key areas of a sawmill are as follows:
Sawmills are often categorised on the basis of their turnover. Small sawmills have a turnover of less than EUR 10 million and an annual cutting volume of up to 50,000 cubic metres; large sawmills have a turnover of more than EUR 50 million and an annual cutting volume of 500,000 cubic metres.3 In some cases, however, sawmills are categorised on the basis of other factors, such as value-added steps.
In Germany 91% of sawmills process up to 50,000 cubic metres per year and make up 26.7% of the total cutting volume, whereas large sawmills account for approximately 77.7% of the cutting volume.4
For the sawmill industries in Germany, Austria and Switzerland, the market is characterised by surplus capacity. One reason for this is that the annual wood cut quantity is far below the available cutting capacity. Overall, we observe increasing log prices and logistics costs alongside growing pressure on product revenue. Increasing political and legal interventions into forestry (more hardwood, usage restrictions (e.g. national parks and set-asides) and stricter production requirements (e.g. the German Federal Immission Control Act, BImSchG, and the Technical Instructions on Air Quality Control) are exacerbating this effect.5 In some cases, attempts are being made to compensate for these problems by importing logs.6
In Germany around 2,000 sawmills still produce 21 million cubic metres of sawn timber each year.7 In Austria 1,100 sawmills produce 8.7 million cubic metres of raw wood;8 and in Switzerland around 500 sawmills process 3.5 million cubic metres of sawable logs.9
Overall, the sawmill industries in all three countries are dominated by small-scale operations, although a few larger sawmills process between 40% and 70% of the total cutting volume.10 As a result, it is increasingly difficult for small sawmills to establish themselves in a market characterised by surplus capacity. Experts estimate that this surplus capacity is a factor of around 2.5.11 Closures, mainly of small- and medium-sized sawmills, will not ultimately lead to a real reduction in capacity.
The overall export rates for sawn timber are high because the wood industry is seen as the foundation of the bio-economy and as such, wood is increasingly being viewed as a necessary alternative in urban construction and for the energy revolution. The market is therefore experiencing growing demand and in turn higher prices. Additionally, more value is being generated due to innovative products, such as wood fibre and hybrid products. Yet despite these positive developments, more and more sawmills are finding it difficult to break even because the costs of innovation necessary to increase value creation (optimisations of processes and methods or the use of green technology) are high.12 And as mentioned above, the limited availability of logs strengthens the position of the suppliers while buyers of the saw products profit from the ever-present surplus capacity.
In light of these developments, we can observe an ongoing consolidation process that is bringing with it an earnings crisis. As a result, experts are advocating a series of changes that are necessary for the survival of the sawmill industry:13
Almost no robust statistical information is publicly available concerning losses in the sawmill industry. In Germany only a small amount of highly aggregated information is available from the German Insurance Association (GDV).14
An analysis of press releases between 2015 and 2017 reveals a total of 79 sawmill fires in Germany (55), Austria (19) and Switzerland (5). Details of the extent and scale of losses were scarce, so this press analysis did not provide any robust statistical findings.

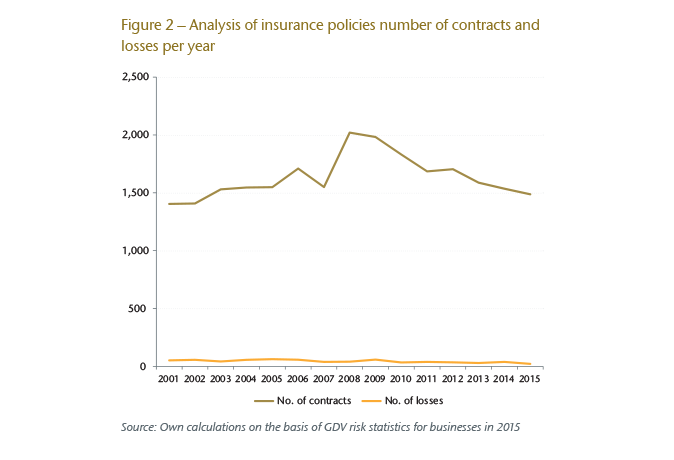

In Germany, an analysis of the risk statistics of the GDV appears in Figure 2.

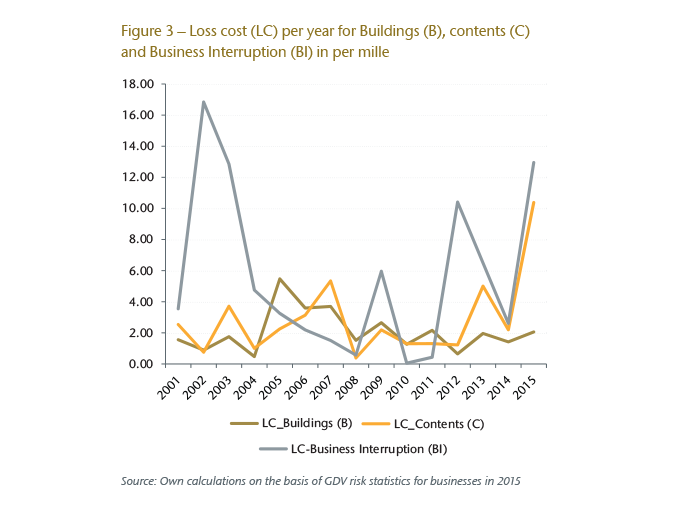

According to these statistics, approximately 3% of sawmills experience fire-related losses in one year. When we consider the ratio of losses to the insured sums in one year, the trend appears highly volatile (see Figure 3). This so-called loss cost rate (LC) is calculated by dividing the reported losses by the reported insured sums.

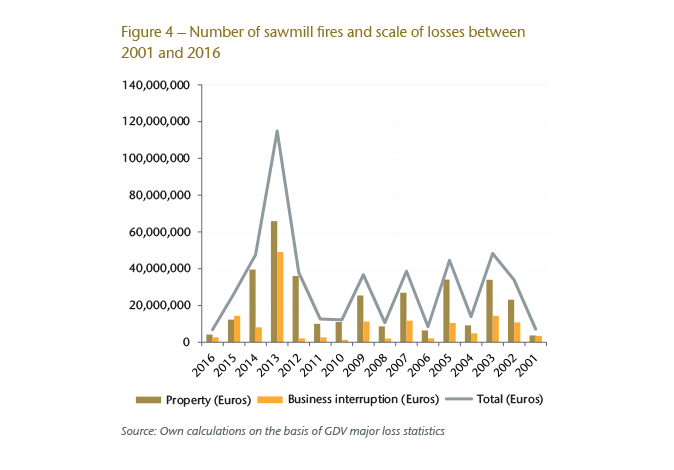

When we consider the major loss statistics of the GDV, in which all losses in excess of EUR 0.5 million are registered, this aggregated volatility remains evident over the years.
The risk of sawmills results from the nature of their operations and the fact that a flammable material (wood) is handled on a large scale.15 Here are some particularly noteworthy details:
The following areas of a sawmill are particularly vulnerable:
The loss reports and press releases named the following as the most frequent causes of losses:
As an Austrian example from the past shows,when the insurance situation deteriorated significantly as a result of the losses that occurred there, fire prevention measures can greatly reduce the fire risk of sawmills.17 Even so, sawmills often fail to take the necessary steps to prevent fires. One reason is that many sawmills were established a long time ago and the current economic situation limits investment options. Therefore, fire alarm and sprinkler systems that cover all of the areas of a building tend to be few and far between.18 Inspections of sawmills still consistently reveal that wood is stored in the free space between buildings or that fire walls are being rendered ineffective by unprotected openings.
Due to the losses in recent years, the German Association of the Sawing and Wood Industry and the GDV decided to draw up common fire prevention guidelines for sawmills in order to improve fire prevention and create awareness of solutions for cost-effective insurance cover. The guidelines are currently in the draft stage and will almost certainly be finalised in the next few months.19

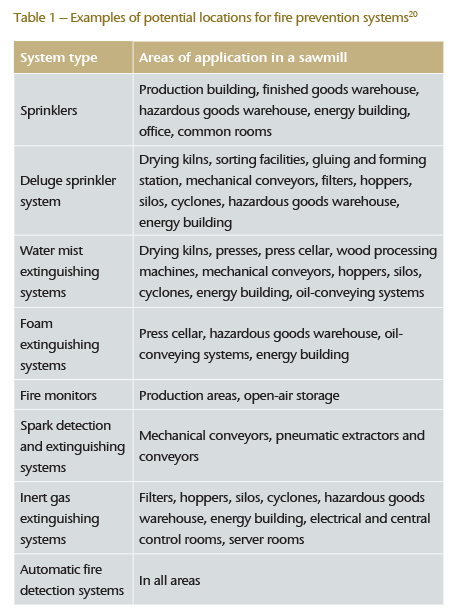

Traditional fire prevention measures that are in place in other types of business are also well suited for sawmills and can greatly reduce the fire risk and the potential losses following a fire in a sawmill. Here are some examples of typical fire prevention measures:
By dividing a sawmill into complexes or fire zones, a fire can be prevented from spreading to other areas of a sawmill. In particular, it is advisable to separate the following areas to prevent fires from spreading:
Wherever possible, buildings and warehouses should be at least 20 metres apart. No material should be stored in this open space.
Additionally, technical rooms and areas exposed to a higher risk should be made fire-resistant at the very least. Separation to prevent the spread of fire is particularly advisable for the following:
In order to ensure that these areas are separated so that fire cannot spread, all openings must be fitted with adequate fire-resistant protection. The same applies to necessary openings in fire walls and complex partition walls.
The building materials and components in the building should consist of as few flammable materials as possible so as to prevent a fire from spreading rapidly through the structure. If the fire service is notified quickly enough, this configuration might enable the fire service to enter the building to extinguish an incipient fire.
Other fire prevention measures that can be considered for a sawmill:
As mentioned above, the Association of the German Sawing and Wood Industry and the GDV are currently drawing up guidelines on fire prevention in sawmills (VdS 3520). The guidelines provide information on how to prevent fires and explosions as well as their effects, especially in sawmills and in typical sawmill processing stages, such as steaming, technical drying, planing, cutting and impregnating. The guidelines also recommend organisational, technical, structural and system-specific measures as well as preventive measures for sawmills.
Due to the nature of the business with its generally high fire load, the likely rapid spread of fire and the frequent lack of partitioning between warehouses and buildings, the probability for a total loss is high. The manufacturing process is increasingly automated and the individual units are connected by conveyors, which means that sawmills are often a single interconnected fire complex. This means that the maximum possible loss in a sawmill can normally be assumed to be 100% of the insured amount including any agreed extensions.
After an incurred loss, often discrepancies inevitably appear between the actual and the reported/insured amounts, resulting in a policyholder being under-insured in certain situations. It is therefore wise to test the plausibility and sufficiency of the reported insured sums at least once per year and adjust them if necessary.
In a sawmill, the sawing area with sawing equipment and the profiling/chipping line are typically problematic bottlenecks. Experience has shown that the delivery time for important equipment, such as the sawing line, can be far in excess of 12 months; it is therefore advisable to query and regularly check the expected delivery time for the main processing equipment – e.g. the cutting line – as changes in the global market can lead to significant fluctuations. Such equipment is often only manufactured to order and based on customer specifications. The insured amount and the indemnity period for the fire business interruption insurance should reflect this.
Based on our experience, it tends to be difficult to mitigate any potential loss from business interruption unless alternative facilities with robust capacities are available or closed sawmills in the vicinity that are still ready for production can be used. Still, additional costs and extra expenses are to be expected in such a case and need to be factored into the underwriting considerations.
The active fire prevention measures in a sawmill should be critically questioned and their actual effectiveness to extinguisha fire should be examined and evaluated; inspections of sawmills continue to reveal that fire prevention systems are in place yet suffer significant defects that cast doubt on their effectiveness.
Fire protection engineers, e.g. of the insurance company, should inspect sawmills regularly, assess the risk situation on site, identify weaknesses and propose reasonable preventive and protective measures to lower the risk of fire. Identified shortcomings – e.g. extinguishing systems, the extinguishing water supply or ineffective fire-rated partitions – should be rectified quickly and properly; the remedy of the deficiency should then be reported by the insured.
Based on current experience, in order to lower the risk of total loss in the event of a fire, the following seems essential:
Given the nature of their operations, the vulnerablility of sawmills is statistically significant in terms of the frequency and severity of fire losses. Due to their layout, they often form an interconnected fire complex; combined with their below-average fire prevention standards, a fire can be expected to cause considerable – if not total – losses.
Feedback from sawmill associations and discussions with primary insurers reveal that the problem is known; for example, it is reflected in the more restrictive underwriting policies of some insurers.
At the most essential level, sawmills should be protected by installing suitable stationary fire extinguishing systems – which will certainly pose a considerable financial challenge for the affected operators – in order to reverse the trend and significantly reduce the frequency and severity of losses.
